Xhorse VVDI2 "Non-standard upload data failed" Error

posted by obdii365 on Apr 19, 2017
tags: VVDI2 VVDI2 key programmer VVDI 2

VW polo 2014 with chip id 48 need to do add key.I tried to read pincode by choosing VVDI2 4th immo auto detect cluster diag the cluster turns black and back on but not possible a msg comes out says failed to connect try to cut power i unplugged the battery and tried again no success tried several choices also by key learn auto detect pincode also not possible any idea mates there is one option which is all key lost through OBD is is safe or it car may not start again ?? vvdi2-Non-standard-upload-data-failedLocksmith suggestion:

As far i know VW cars after 6.2014 are not possible to program keys .Could be too, 6FR is a Russian POLO cluster , difficult to work on it If you sure you choice right cluster type do it as below:Run VVDI2 key programmer software, choose correct cluster type , click READ IMMO (if you have working key) , if fail , close VVDI 2 , go to Log folder copy latest LOG (latest will contain only info from latest operation) and post it  to engineer to look if they can fix it or not. http://xhor continue reading
2 visits |0 Comments|Reply

Cummins Insite 7.6.2 Windows 10 Installation Error Solution

posted by obdii365 on Apr 17, 2017
tags: Cummins Insite Cummins Inline6

I used to use cummins insite 7.6.2 with Cummins Inline 6 data link adapter on my personal laptop with a version of windows 10 English 64 bit.I was able to install cummins without a glitch and activate it no problem.

Now i bought a new laptop and got the iso from microsoft for my windows 10 since i have a legal key.

when i try to install cummins insite on this computer i get error message insite installation was stopped bla bla bla .

so i tried on my laptop with the version from thepiratebay and it works, i then formated my old laptop and installed windows from my legal copy and get the same error as the new laptop.

maybe there is a service or something i’m missing on the legal copy .

Run as administrator, and disable windows firewall and protection.. I have done all that.


Solved !!!

Its all fixed it was net frameworks not installed in windows 10.

continue reading
1 visits |0 Comments|Reply

How to Program Toyota Highlander 2014 smart key?

posted by obdii365 on Apr 13, 2017
tags: Toyota Techstream Mini VCI

Hello friends please i need help to program smart key for highlander 2014 model 89990-0E080 all key lost

smart key ecu 89990-0E080 with mini eprom c66 inside

i try to add the key on another same car and copy the dump to use n my smart key box it didn't work




If you have Toyota Techstream just reset Smartkey system via OBD. If you don't have a way of generating Passcode you can purchase online for a few $$.


Yes if all keys lost you can use a USED fob if you reset the smartkey system (using Techstream seed and passcode method). Note, this works in USA market vehicles, not sure about other countries. With Techstream (or Chinese mini VCI clone) and Passcode from supplier mentioned above no need to take dash apart. Everything done via OBD2 port.

continue reading
5 visits |0 Comments|Reply

OBDSTAR X300 DP Power Supply Problem Solution

Original ODSTAR X300 DP (Key Master DP) key programmer comes with 2 power supplies. Recently some customers mixed use these two which cause the low battery issue.

OBDSTAR Key Master DP Power Supply Warning:

Please charge for the pad according to instruction manual when the battery is low.

Please charge with 5V power provided by our company or the other companies.

Never use power more than 5V to charge to avoid any damages of the machine.

Please kindly note above warning. obdstar-x300-dp-battery-supply-1


obdstar-x300-dp-battery-supply-2 Power supply marked #1 above: used to power up the eeprom adapter for X300DP

Power supply marked #2 (5V) above: used to power up OBDSTAR X300 DP pad/tablet.

continue reading
2 visits |0 Comments|Reply

VVDI MB BGA Tool Program Mercedes E300 2010 Keys

posted by obdii365 on Apr 05, 2017
tags: vvdi mb bga tool vvdi mb tool

Just done key programming on a Mercedes-Benz E300 2010 year by using VVDI MB BGA tool key programmer (software 2.1.7). I have also done Mercedes W204 all keys lost with VVDi mb tool and it worked every time.I have unlocked W204 ELV many times also. Sometimes it unlocks quickly and sometimes take long but it unlocks.

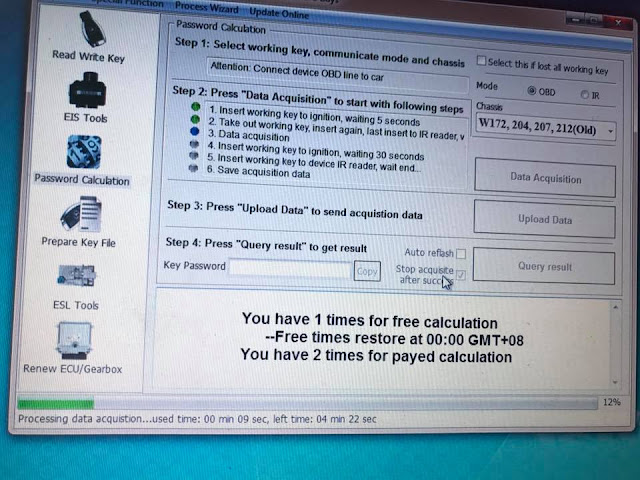

vvdi-mb-bga-program-benz-e300-key-7 continue reading
3 visits |0 Comments|Reply

How to use Delphi DS150E Flight Flight Recorder Function

posted by obdii365 on Apr 03, 2017
tags: autocom delphi ds150e

Hello everyone, I enclose rapid and complete guide for the flight recorder with Delphi DS150E VCI new programs.

Fast guide:

Function Flight Recorder

1) starts autocom as to make traditional diagnosis

2) enter the list of parameters in real time

3) go to the entry to create a list of '' personal parameters '' and select items affecting diagnose

4) at the bottom you can find icon with a plane .... click on it and autocom records the voices on the micro sd you entered before

5) after holding down the small button located on the interface between USB and micro begin to flash the green LEDs that tell you you started data acquisition

6) disconnect the USB cable from a PC

7) When you are done recording connect the USB cable between the PC and interfacein the menu on the bottom right click again on airplane icon and the PC will resume the data stored in the micro sd    Universal diagnostic tool


continue reading
3 visits |0 Comments|Reply

How to Program Ford Transit 2007 All Keys Lost

posted by obdii365 on Mar 30, 2017
tags: Ford key programmer Ford VCM2 IDS Tango


Hi, I need to make transponder for a new key, since old keys are lost.It is Ford Transit model 2007, ecu Fo mo co 6c11 12a650 ak. Where are data for key stored in ecu, dash or in body control module?I disassembled the ecu but I am not sure where the immo data for keys are stored. there is st 10f275 mcu, but I cannot find the eeprom. Are these data stored in the ecu at all? Or they are somewhere else in dash or general module?


Locksmith solution:

Ford Transit 2007 key data is stored in the BCM immo box behind the glove box MC9S12DT256 4L91N.Read that dump 9s12 and add key with Tango key programmer etc but very long winded.

Easier to relearn new key with Ford VCM2 IDS.

You will need 2 keys if using Ford IDS.

4D63 80 bits transponder from OBD you don’t neet the dump read just make key turn ignition add key via IDS.

continue reading
1 visits |0 Comments|Reply

Launch Easydiag firmware "not found contain text ID"

posted by obdii365 on Mar 27, 2017
tags: Launch Easydiag Easydiag Easydiag scanner

Problem:I need some help here, please.My Launch Easydiag obd2 code scanner firmware was 11.27, and I upgraded to 11.37, everything went well during the process.I am using EOBD version 22.46 January 2017.But now I have a problem, Easydiag does not connect with VW-28.00 and BMW-49.50, error message is " not found contain text ID {24110047} " and Launch X431 is closed, stops working.Can I go back to firmware 11.27 again ?Can anyone help me with this ?



try another xpro3 application . there is a new one out v20.!ocpWED4L!kQSgoRX0JzDb3sZTlSCEFZKNg9Srzazl3w91lPIABqo



Ok, tested, So far it's working well , no problem.I install New APK V-20 (byXeon1) great friendI also uninstalled " avast cleanup " I think he was killing my files. continue reading
115 visits |0 Comments|Reply

John Deere Service EDL 7215R cable pinout to Kess v2

How to connect kess v2 on John Deere Service ADVISOR  Electronic Data Link (EDL) V2 7215R(9 pin) for reading?

John Deere 9 pin cable connection.. Here you go.

This is a bad John Deere 7215R, not working. No wires to some pins John-Deere-7215R This is the manual connection from alientech Kess V2 master: john-deere-kess-v2-pinout

It’s the 2014 year Here you see how to connect. the 7r series is non Premium tractors so you must use the pinout on the left Picture. use-the-pinout-on-the-left-Picture


Where can you buy one adapter for John Deere 9 pin to do your cable?

In Google “John Deere 9 pin cable” or "J1939 female", many webs can be found there like it’s a high-quality one, definitely working fine, tested by professionals.



continue reading
3 visits |0 Comments|Reply

How to solve Ktag 2.13 fw 6.070 all gray problem

posted by obdii365 on Mar 23, 2017
tags: ktag ktag 6.070.ktag ksuite

Here's the solution to solve all grey problem in ktag 2.13 firmware 6.070 ecu tuning master kit.

Disclaimer: This information is not mine, is work off some search in MH forum and help off some users


1 install ksuite 2.08

2 download the file

3 the file have 3 parts (sd card, update too ksuit, nxp bin if necessary)

4 put the file update in the past off ksuite 2.08

5 use new sd card ( in my case the old one doesn't work )

6 copy the file to sd card

7 open ksuite the ksuite update autoif works after install the k-suite that you want, if doesn't work you have to re-flash the nxp the file is there for me was not necessary

Don't use the internet when the ktag 6.070 is connected.


Free download Ktag update file!bklCDZBJ!jOqgbydrMF6NUlnS_vb9amBOHreXou42IsuqPH1Yn6I
